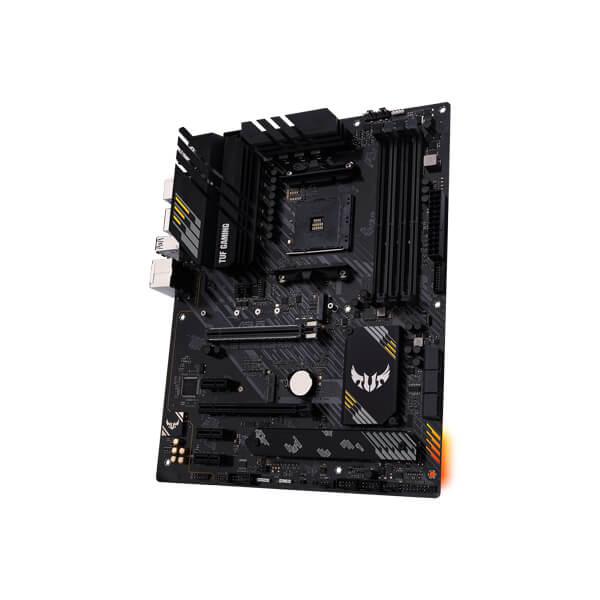

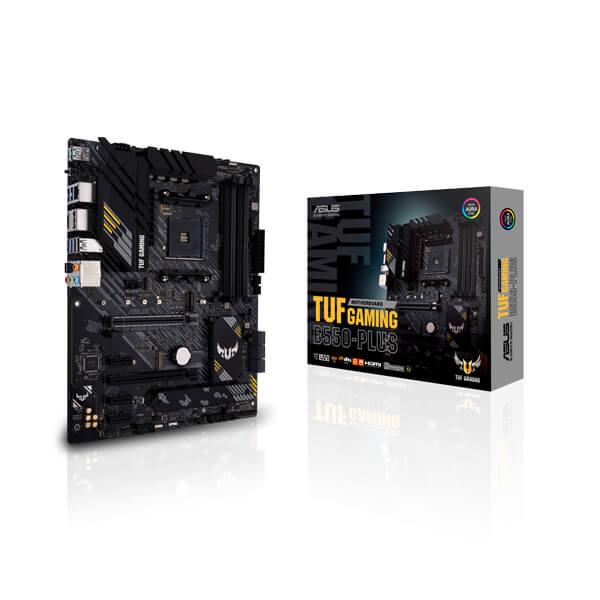

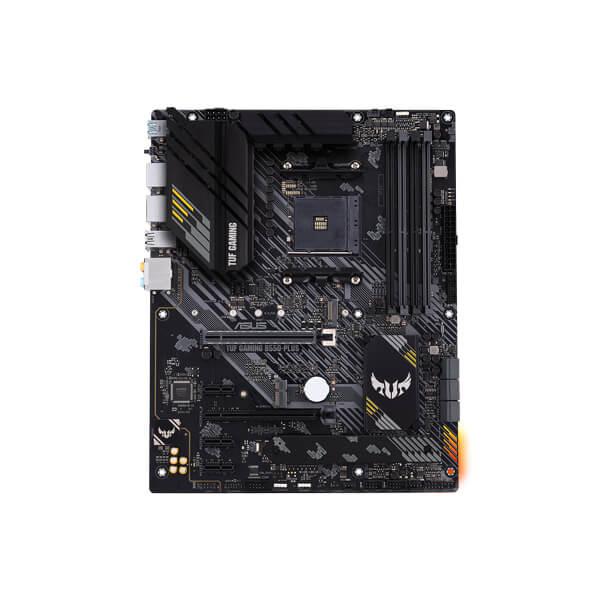

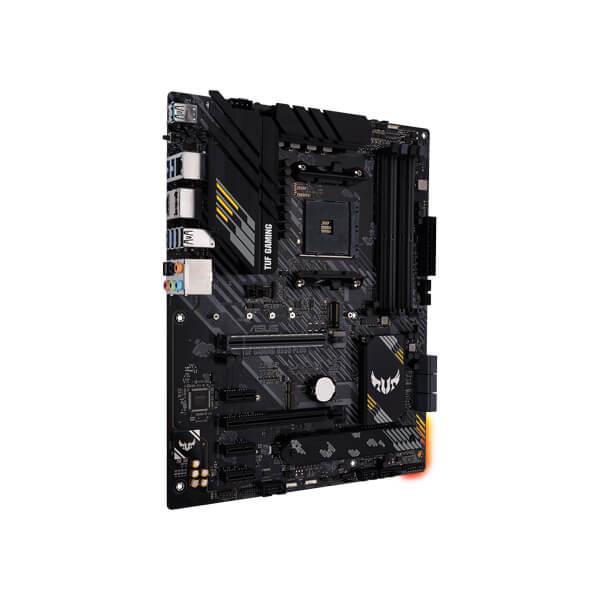

ASUS TUF Gaming B550 PLUS Motherboard

13,305.08

Brands ASUS
Product Code: TUF-GAMING-B460M-PLUS
Available: In stock

Description

  • CPU
    Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors *
    * Refer to www.asus.com for CPU support list
  • Chipset
    AMD B550
  • Memory
    4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
    Dual Channel Memory Architecture
    ECC Memory (ECC mode) support varies by CPU.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    1 x DisplayPort 1.4 **
    1 x HDMI 2.1(4K@60HZ)
    *Graphics specifications may vary between CPU types.
    **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
  • Multi-GPU Support
    Supports AMD 2-Way CrossFireX Technology
  • Expansion Slots
    3rd Gen AMD Ryzen™ Processors
    1 x PCIe 4.0 x16 (x16 mode)
    AMD B550 Chipset
    1 x PCIe 3.0 x16 (x4 mode)
    3 x PCIe 3.0 x1 *1
    * Support PCIe bifurcation for RAID on CPU function.
  • Storage
    Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
    3rd Gen AMD Ryzen™ Processors :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
    AMD B550 Chipset :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
    6 x SATA 6Gb/s port(s),
    Support Raid 0, 1, 10
  • LAN
    Realtek RTL8125B 2.5Gb Ethernet
    TUF LANGuard
  • Wireless Data Network
    M.2 slot only (Key E) (Support PCIe interface)*
    *Wi-Fi module is sold separately.
  • Audio
    Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
    – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
    Audio Feature :
    – Exclusive DTS Custom for GAMING Headsets.
    – Optical S/PDIF out port(s) at back panel
    – Audio cover
    – Audio Shielding
    – Dedicated audio PCB layers
    – Premium Japanese audio capacitors
    – Unique de-pop circuit
  • USB Ports
    Rear USB Port ( Total 8 )
    2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
    4 x USB 3.2 Gen 1 port(s)( x Type-A)
    2 x USB 2.0 port(s)( x Type-A)
    Front USB Port ( Total 6 )
    2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
    4 x USB 2.0 port(s)(4 x Type-A)
  • Software Features
    ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – AI Noise Cancelling Microphone AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ – EZ update TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
  • ASUS Special Features
    ASUS TUF PROTECTION – ASUS DIGI+ VRM (Digital power design with Dr. MOS) – ASUS Enhanced DRAM Overcurrent Protection – ASUS ESD Guards – TUF LANGuard – ASUS Overvoltage Protection – ASUS SafeSlot – ASUS Stainless-Steel Back I/O ASUS Q-Design – ASUS Q-DIMM – ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – ASUS Q-Slot ASUS Thermal Solution – Aluminum M.2 heatsink ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – Procool AURA Sync – Standard RGB headers – Addressable Gen 2 RGB header
  • Back I/O Ports
    1 x DisplayPort
    1 x HDMI
    1 x LAN (2.5G) port(s)
    2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)
    4 x USB 3.2 Gen 1 (blue) Type-A
    2 x USB 2.0 (one port can be switched to USB BIOS FlashBack)
    1 x Optical S/PDIF out
    5 x Audio jack(s)
    1 x BIOS FlashBack Button(s)
  • Internal I/O Ports
    1 x CPU Fan connector(s)
    1 x CPU OPT Fan connector(s)
    3 x Chassis Fan connector(s)
    1 x AIO_PUMP connector
    2 x Aura RGB Strip Headers
    1 x Addressable Gen 2 header(s)
    1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x M.2 with E key for Wi-Fi module
    1 x SPI TPM header
    6 x SATA 6Gb/s connector(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin EATX 12V Power connectors
    1 x Front panel audio connector(s) (AAFP)
    1 x Thermal sensor connector(s)
    1 x Clear CMOS jumper(s)
    1 x System panel connector
    1 x COM port header

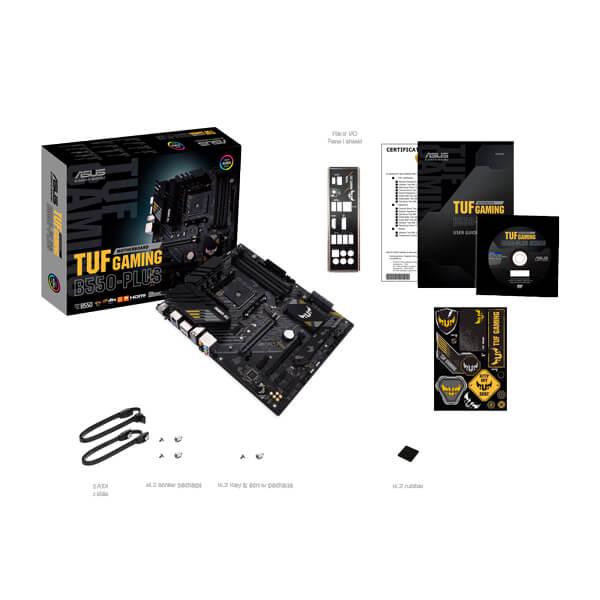

  • Accessories
    User’s manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x Supporting DVD
    1 x TUF Gaming Sticker
    1 x TUF Certification card(s)
    1 x M.2 SSD screw package(s)
    1 x M.2 Rubber Package(s)
  • BIOS
    256 Mb Flash ROM, UEFI AMI BIOS
  • Manageability
    WOL by PXE
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • Note
    *1 PCIE 3.0 X16_2 runs x1 mode when any of the PCIe 3.0 x1 slots is occupied. *2 M2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated, SATA6G_56 will be disabled.



Powered by Flixmedia

ASUS TUF Gaming B550 PLUS designed with Ryzen AM4 ATX gaming motherboard with PCIe 4.0, dual M.2, and Aura Sync RGB lighting support

Features

  • AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ processors
  • Enhanced power solution: 8+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
  • Comprehensive cooling: VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
  • Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C support
  • Made for online gaming: 2.5 Gb Ethernet, M.2 slot (Key E) for Wi-Fi module, TUF LANGuard, and Turbo LAN technology
  • Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
  • AI noise-canceling microphone: provides crystal-clear in-game voice communication

Specifications

CPU Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors
Chipset
AMD B550
Memory 3rd Gen AMD Ryzen™ Processors
4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
Next Generation AMD Ryzen PRO Processors
4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
Graphic 1 x DisplayPort 1.4 *
1 x HDMI 2.1(4K@60HZ)
*Graphics specifications may vary between CPU types.
Multi-GPU Support Supports AMD 2-Way CrossFireX Technology
Expansion Slots 3rd Gen AMD Ryzen™ Processors
1 x PCIe 4.0 x16 (x16 mode)
AMD B550 Chipset
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x1 *1
* Support PCIe bifurcation for RAID on CPU function.
Storage Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
3rd Gen AMD Ryzen™ Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
AMD B550 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
6 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
LAN Realtek RTL8125B 2.5Gb Ethernet
TUF LANGuard
Wireless Data Network M.2 slot only (Key E) (Support PCIe interface)*
*Wi-Fi module is sold separately.
Audio Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
– Exclusive DTS Custom for GAMING Headsets.
– Optical S/PDIF out port(s) at back panel
– Audio cover
– Audio Shielding
– Dedicated audio PCB layers
– Premium Japanese audio capacitors
– Unique de-pop circuit
USB Ports Rear USB Port ( Total 8 )
2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
4 x USB 3.2 Gen 1 port(s)( x Type-A)
2 x USB 2.0 port(s)( x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A)
Software Features ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– AI Noise Cancelling Microphone
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
– EZ update
TUF GAMING CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
DTS Custom for GAMING Headsets
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
ASUS Special Features ASUS TUF PROTECTION
– ASUS DIGI+ VRM (Digital power design with Dr. MOS)
– ASUS Enhanced DRAM Overcurrent Protection
– ASUS ESD Guards
– TUF LANGuard
– ASUS Overvoltage Protection
– ASUS SafeSlot
– ASUS Stainless-Steel Back I/O
ASUS Q-Design
– ASUS Q-DIMM
– ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– ASUS Q-Slot
ASUS Thermal Solution
– Aluminum M.2 heatsink
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Procool
AURA Sync
– Standard RGB headers
– Addressable Gen 2 RGB header
Back I/O Ports 1 x DisplayPort
1 x HDMI
1 x LAN (2.5G) port(s)
2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0 (one port can be switched to USB BIOS FlashBack)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x BIOS FlashBack Button(s)
Internal I/O Ports 1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 with E key for Wi-Fi module
1 x SPI TPM header
6 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PXE
Operating System Windows® 10 64-bit
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Warranty 3 Years
Note *1 PCIE 3.0 X16_2 runs x1 mode when any of the PCIe 3.0 x1 slots is occupied.
*2 M2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated, SATA6G_56 will be disabled.***Features, Price and Specifications are subject to change without notice.

Additional information

Weight 20 kg
Dimensions 20 × 20 × 20 cm
