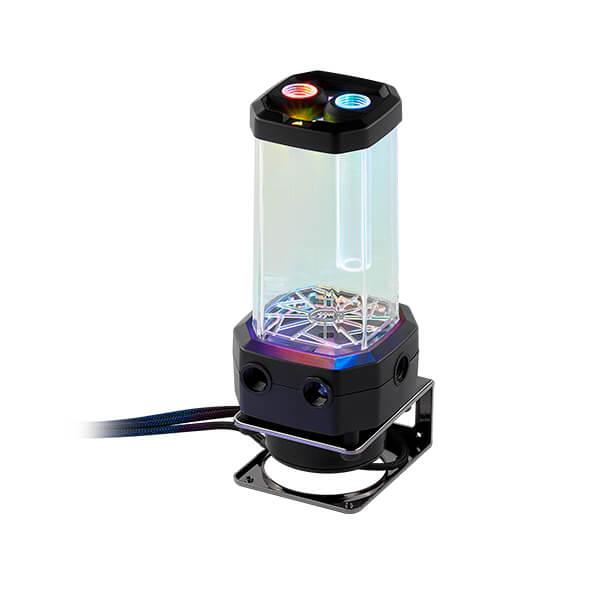

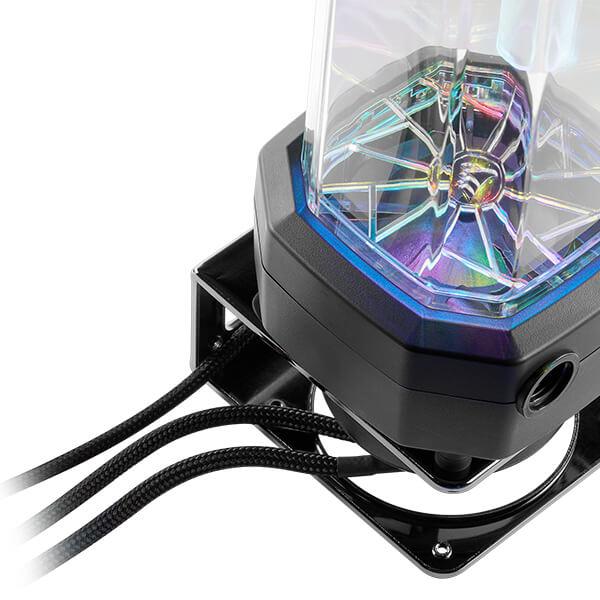

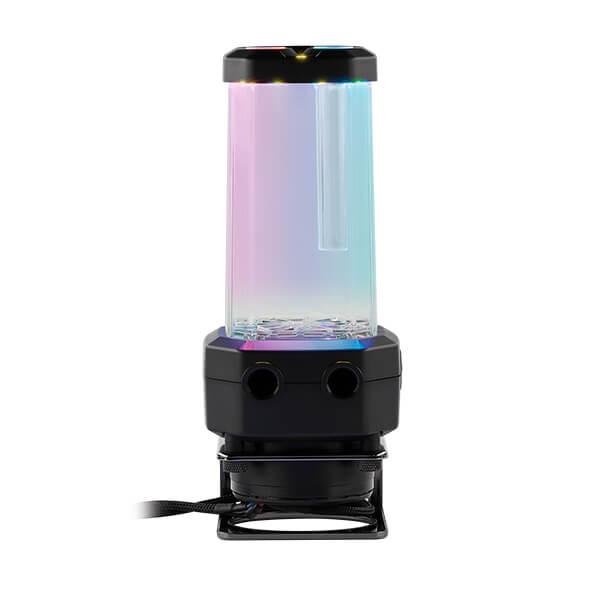

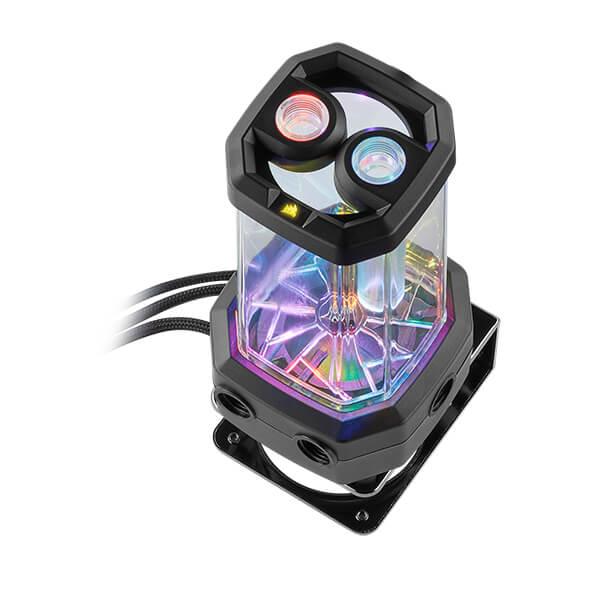

Corsair Hydro X XD5 RGB

13,403.39

Brands CORSAIR
Product Code: CX-9040002-WW
Available: In stock

Description

Category Pump/Reservoir Combo

RGB TypeARGB

Operating Temparature60 Degree

Features

The CORSAIR Hydro X Series XD5 RGB Pump/Reservoir Combo features a high-performance D5 PWM pump, integrated RGB lighting and in-loop temperature sensor to drive the world’s most demanding custom cooling systems.

CONTROLLED COOLING FROM EVERY ANGLE

A high-performance Xylem D5 PWM pump delivers a strong and balanced flow for your loop.

VIVID RGB LIGHTING

Ten top-mounted RGB LEDs light up your coolant with stunning customizable RGB lighting when combined with a CORSAIR iCUE RGB lighting controller.

YOUR COOLANT ON DISPLAY

The integrated 330ml reservoir puts your custom cooling system’s coolant front-and-center, with stunning angular design and an integrated fillport that makes filling, flushing and topping-off coolant easy.

IN-LOOP TEMPERATURE MONITORING

An included G1/4 temperature sensor provides real-time coolant temperatures from inside your cooling loop.

MULTI BRACKET MOUNTING INCLUDED

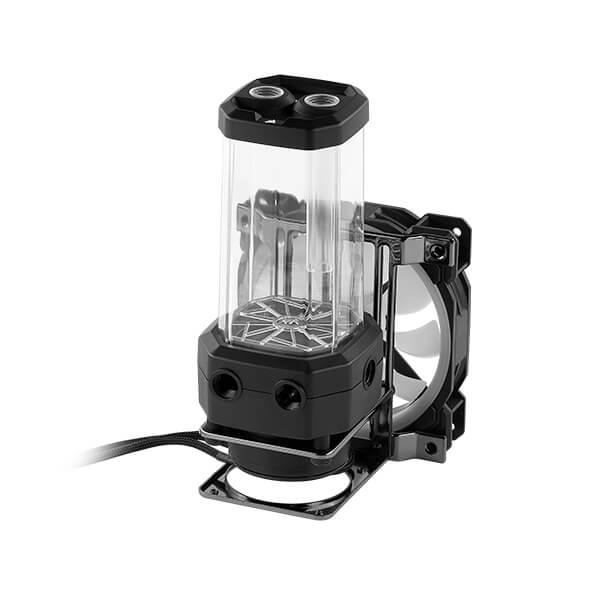

Choose to mount your XD5 directly to your case or to any available 140mm or 120mm fan mount with the included mounting bracket set.

INCLUDED 24-PIN POWER SUPPLY JUMPER BRIDGE

Allows you to start your pump without powering your main components, for easy and safe filling.

RUBBERIZED MOUNTING SYSTEM

Reduces pump vibrations and noise, so your custom cooling loop is seen, not heard.

INDIVIDUALLY SLEEVED CABLING

The XD5 RGB Pump/Reservoir’s cabling is individually sleeved in premium paracord, ensuring your custom cooled system build looks great.

Intelligent Control. Unlimited Possibilities.

Combine with a CORSAIR iCUE RGB lighting controller and powerful CORSAIR iCUE software to allow you to customize and instantly sync RGB lighting across all your CORSAIR RGB products including water blocks, fans, keyboard, LED light strips and more.

CUSTOM COOLING CONFIGURATOR

Take out all the guesswork and create the custom cooling system of your dreams. With thousands of components and millions of hardware combinations, it’s easy to pick, tweak and personalize your custom cooling system, with a detailed render of how your future loop will look.

Specifications

Product Type Pump / Reservoir Combo
Operating Temperature 60°C coolant temperature
Color Black
Lighting RGB
Compatibility – Material Only mix with other copper / brass products
iCUE Compatibility CORSAIR Commander PRO / Lighting Node PRO
Voltage 12V
Power draw 30W
Cable Type

4-pin Molex (AMP Mate-N-Lok) – 45cm cable length

4-pin Molex (AMP Mate-N-Lok) – 45cm cable length
Connectivity
4-pin fan header (KK254)- 45cm cable length
Port Thread
G1/4″ BSPP
Fluid Chamber Material
Nylon
Pump Type
Xylem D5 PWM
Liquid Capacity
330ml
Flow Rate
800L/h at 2.1m pressure head
Speed
4800RPM
PWM
20-100%
Warranty
3 Years
Note
***Features, Price and Specifications are subject to change without notice.

Additional information

Weight 140 kg
Dimensions 30 × 30 × 30 cm
