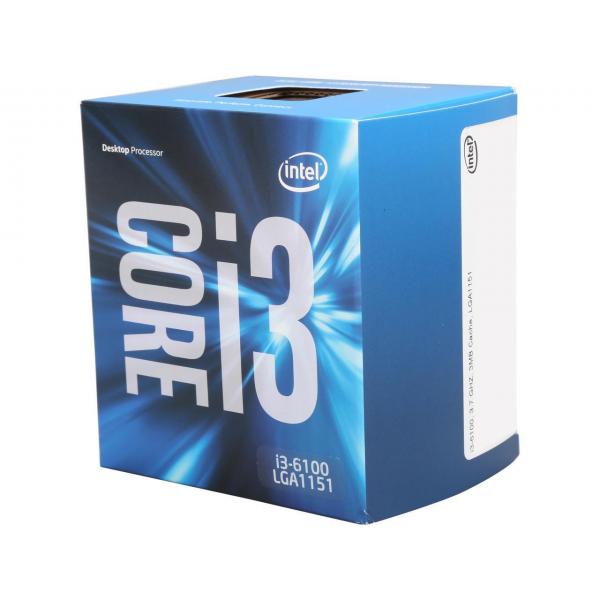

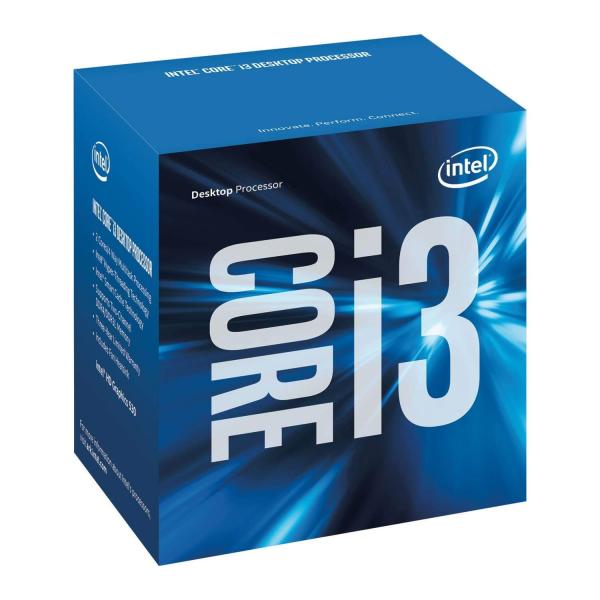

Intel Core I3-6100

7,542.37

Brands INTEL
Product Code: BX80662I36100
Available: In stock

Description

  • SeriesCore i3 (6th Gen)
  • CORES2 Cores
  • THREADS4 Threads
  • SocketLGA1151
  • SPEED3.7 GHz
  • CACHE3 MB
  • MAX MEMORY SUPPORT64 GB
  • INTEGRATED GRAPHICSIntel HD Graphics 530
  • INCLUDED CPU COOLERYes
  • UNLOCKEDNo
  • TDP51W
  • WARRANTY*3 YEARS

Specification

Performance
# of Cores 2
# of Threads 4
Processor Base Frequency 3.7 GHz
TDP 51 W
Memory Specifications
Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4-1866/2133, DDR3L-1333/1600 @ 1.35V
Max # of Memory Channels 2
Max Memory Bandwidth 34.1 GB/s
ECC Memory Supported ‡ Yes
Graphics Specifications
Processor Graphics ‡ Intel® HD Graphics 530
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.05 GHz
Graphics Video Max Memory 1.7 GB
Graphics Output eDP/DP/HDMI/DVI
4K Support Yes, at 60Hz
Max Resolution (Intel® WiDi)‡ 1080p
Max Resolution (HDMI 1.4)‡ 4096×2304@24Hz
Max Resolution (DP)‡ 4096×2304@60Hz
Max Resolution (eDP – Integrated Flat Panel)‡ 4096×2304@60Hz
Max Resolution (VGA)‡ N/A
DirectX* Support 12
OpenGL* Support 4.4
Intel® Quick Sync Video Yes
Intel® InTru™ 3D Technology Yes
Intel® Insider™ Yes
Intel® Wireless Display Yes
Intel® Clear Video HD Technology Yes
Intel® Clear Video Technology Yes
# of Displays Supported ‡ 3
Device ID 0x1912
Expansion Options
PCI Express Revision 3
PCI Express Configurations ‡ Up to 1×16, 2×8, 1×8+2×4
Max # of PCI Express Lanes 16
Package Specifications
Max CPU Configuration 1
Package Size 37.5mm x 37.5mm
Graphics and IMC Lithography 14 nm
Sockets Supported FCLGA1151
Low Halogen Options Available See MDDS
Advanced Technologies
Intel® Turbo Boost Technology ‡ No
Intel® vPro Technology ‡ No
Intel® Hyper-Threading Technology ‡ Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
Intel® TSX-NI No
Intel® 64 ‡ Yes
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Identity Protection Technology ‡ Yes
Intel® Stable Image Platform Program (SIPP) No
Intel® Small Business Advantage Yes
Intel® Data Protection Technology
Intel® AES New Instructions Yes
Secure Key Yes
Intel® Platform Protection Technology
OS Guard Yes
Trusted Execution Technology ‡ No
Execute Disable Bit ‡ Yes
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.

Additional information

Weight 200 kg
Dimensions 23 × 23 × 23 cm
