Thermaltake PACIFIC M360 D5 Hard Tube


Brands Theermal Take
Product Code:  CL-W217-CU00SW-A
Available: In stock

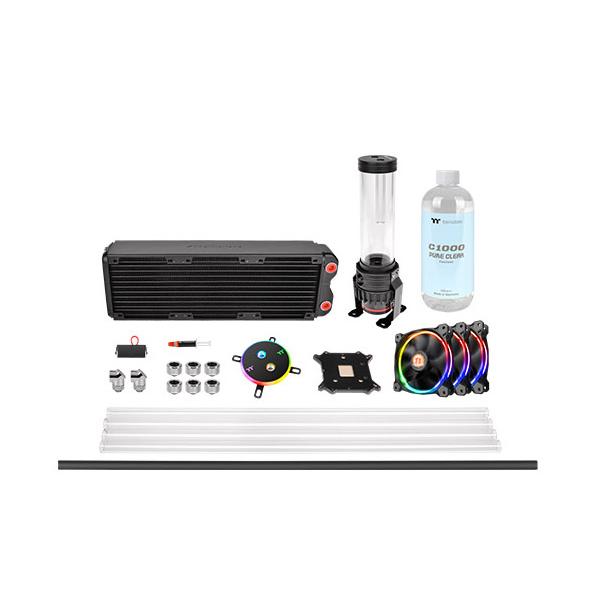

Thermaltake Pacific M360 D5 Hard Tube Water Cooling Kit

The Pacific M360 D5 Hard Tube Water Cooling Kit is an efficient, yet quality liquid cooling solution for all watercooled gaming systems. Inside you will find a W4 RGB CPU waterblock, PR22-D5 pump/reservoir combo, RL360 radiator, C1000 Pure Clear coolant, 3 Riing 12 RGB fans, 6 C-Pro compression fittings, 2 adapter fittings, 4 PETG hard tubes and other accessories.

Tt LCS Certified

Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis’ have been tested to be compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

Pacific W4 RGB CPU Water Block

High-quality CPU water block supports all modern CPU sockets with a universal mounting mechanism that provides error-free, tool-less installation. The specially machined copper base with nickel coating prevents corrosion and guarantees superior thermal performance.

Pacific PR22-D5 Reservoir/Pump Combo

Manufactured from POM and PMMA, the unit includes a 300ml reservoir with an integrated D5 pump, offering exceptional performance and unrivalled reliability for all gaming systems.

Pacific RL360 Radiator

Optimized for maximum heat dissipation, the high perfomance 360mm radiator ultilizes high-density fin design, and German zinc alloy aluminum and aerospace-grade materials, bringing a new level of cooling performance and reliability to any watercooled gaming PCs.

Riing 12 RGB High Static Pressure LED Radiator Fan (3 Fans Pack)

Specially made for those seeking a 120mm PWM fan with superior airflow, silent operation and RGB lighting, the fan utilizes compression blades, hydraulic bearing, and a patented 256 colors LED ring, lighting up your system without sacrificing performance.

C1000 Pure Clear Coolant

Made in Germany, the non-flammable clear coolant is a ready-to-use cooling solution with at least 3 years shelf life in airtight containers, providing great performance while preventing the entire cooling system – copper, brass, nickel, and aluminum – from corrosion.

Pacific C-Pro G1/4 PETG Tube 16mm OD Compression Fitting – Chrome

Featuring chrome plating, the compression fitting comes with special four rubber O-rings leak-free design and patented structure for ultimate loop management. 6 compression fittings are included in the kit.

Pacific G1/4 90 Degree Adapter – Chrome

Finished in chrome-plated copper, the adapter fitting is in 360° revolvable design, and consists of two sealed O-rings, allowing users to redirect the fittings at a 90 degree angle for easier tube routing. 2 adapter fittings are included in the kit.

V-Tubler PETG Tube 5/8” (16mm) OD 500mm (4 Pack)

Manufactured from premium PETG, the rigid tubing provides custom PC water cooling configurations with reliability and durability from end to end.


P/N CL-W217-CU00SW-A
Dimension 523(L) x 221 (W) x 280 (H)
Compatibility Intel LGA 2066/2011/1366/1156/1155/1151/1150/775
(CPU Socket)
Components Dimension Pump & Reservoir:309.7H) x 87.4(W) x 94.1(L) mm
Radiator : 64 (H) x 129 (W) x 402.5 (L)
Tube Dimension OD : 16mm , ID : 12mm , L : 500mm
Fan Spec 1500 RPM (1000RPM with LNC)
Coolant Pure Clear Coolant
Kit Contents
CPU Water Block Pacific Pacific W4 RGBx1
Pump/Reservoir Pacific PR22-D5 Pump/Reservoir Combo x1
Radiator Pacific RL360 Radiator 64 (H) x 129 (W) x 402.5 (L) mm x1
  • Pacific C-Pro G1/4 PETG 16mm OD Compression – Chrome x6
  • Pacific G1/4 90 Degree Adapter – Chrome x2
Fan Riing 12 LED RGB 3 Pack x1
Coolant Thermaltake C1000 Pure Clear Coolant x1
Tube V-Tubler PETG Tube 16mm OD 500mm 4Pack x1
  • Silicone Insert 900mm Tt Premium Edition
  • Intel and AMD Universal Backplated & Mounting Kit
  • 24pin ATX Bridge Tool x1
  • Thermaltake Thermal Grease x1
Warrant 2 Years
Note * Filling Bottle sold separately

***Features, Price and Specifications are subject to change without notice.


Additional information

Weight 200 kg
Dimensions 23 × 23 × 23 cm
